Veamos un ejemplo completo. No hace falta entenderlo todo. Iremos viendo luego cada parte.

El ejemplo viene de aquí

Show the code
source(here::here("R/ggdag-mask.R"))
source(here::here("R/setup.R"))
library(tidyverse)
library(ggdag)
library(broom)
library(rsample)

Pasos en el análisis causal.

  1. Definir la pregunta causal
  2. Especificar las asunciones, una forma es con un diagrama causal
  3. Modelar las asunciones
  4. Diagnosticar el modelo
  5. Estimar el efecto causal
  6. Análisis de sensibilidad

Datos

id

ID

net y net_num

Indican si se usa mosquitera (1) o no (0)

malaria_risk

Riesgo de malaria 0-100

income

ingresos, medida en dólares

health

Puntuación en salud de 0–100

household

Número de personas en el hogar

eligible

Indica si el hogar es eligible para programa de mosquitera gratis.

temperature

La temperatura media por las noches, en Celsius

resistance

Resistencia de los mosquitos locales al insecticida. Escala de 0–100, valores altos indican mayor resistencia

Especificar cuestión causal

  • ¿El uso de la mosquitera reduce el riesgo de malaria?

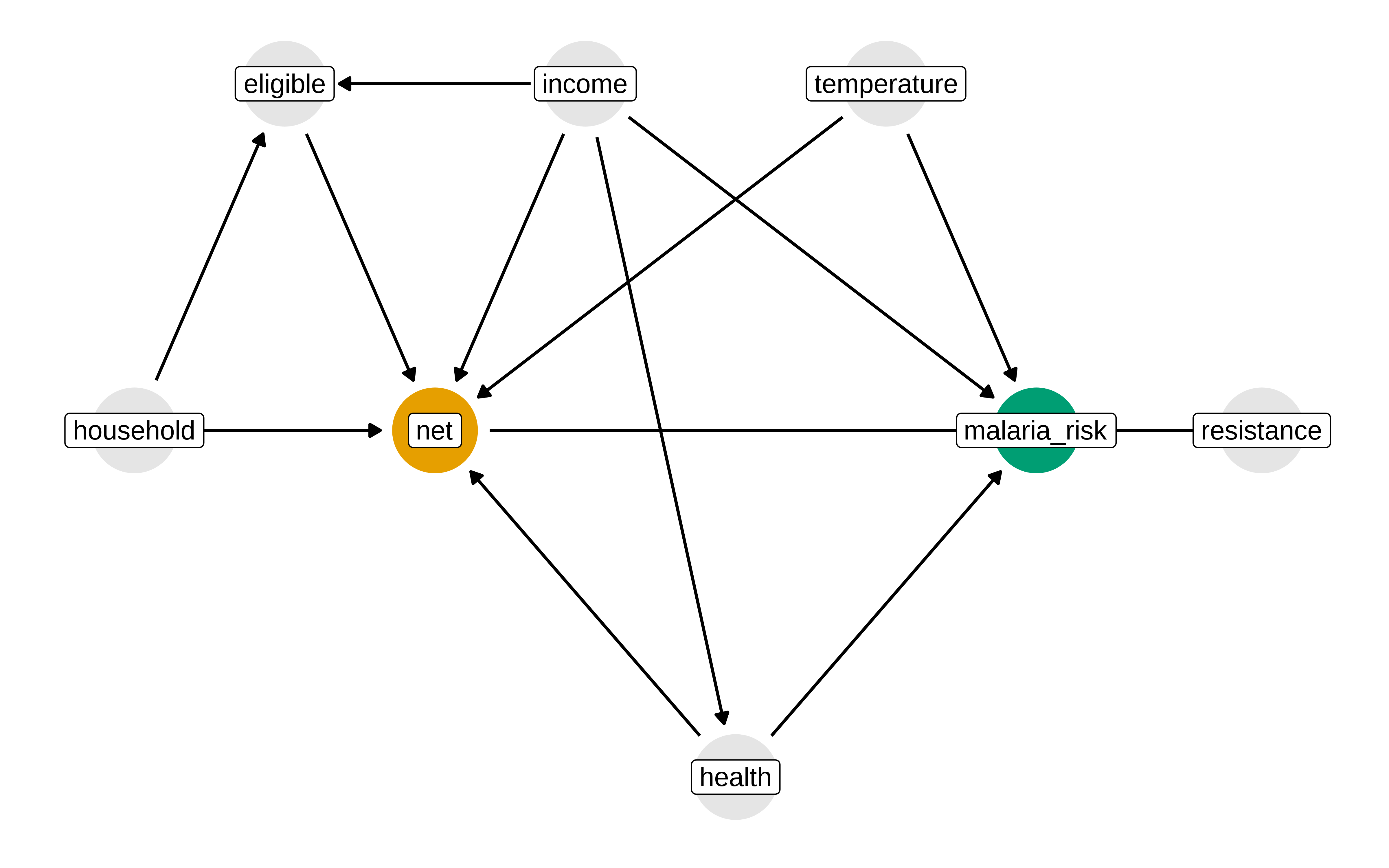

Dibujar la asunciones

El uso de diagramas causales no es imprescindible, pero ayuda a explicitar las asunciones. Estas asunciones son nuestro modelo de como funcionar las relaciones entre las variables, pero puede que no sean correctas. Siempre habría que chequear el conocimiento experto y confrontar con otras explicaciones.

Show the code
library(tidyverse)
library(ggdag)
library(ggokabeito)

net_data <-  read_csv(here::here("data/net_data.csv"))
mosquito_dag <- dagify(
  malaria_risk ~ net + income + health + temperature + resistance,
  net ~ income + health + temperature + eligible + household,
  eligible ~ income + household,
  health ~ income,
  exposure = "net",
  outcome = "malaria_risk",
  coords = list(
    x = c(
      malaria_risk = 7,
      net = 3,
      income = 4,
      health = 5,
      temperature = 6,
      resistance = 8.5,
      eligible = 2,
      household = 1
    ),
    y = c(
      malaria_risk = 2,
      net = 2,
      income = 3,
      health = 1,
      temperature = 3,
      resistance = 2,
      eligible = 3,
      household = 2
    )
  ),
  labels = c(
    malaria_risk = "Risk of malaria",
    net = "Mosquito net",
    income = "Income",
    health = "Health",
    temperature = "Nighttime temperatures",
    resistance = "Insecticide resistance",
    eligible = "Eligible for program",
    household = "Number in the household"
  )
)

p1 <- mosquito_dag |>
  tidy_dagitty() |>
  node_status() |>
  ggplot(
    aes(x, y, xend = xend, yend = yend, color = status)
  ) +
  geom_dag_edges() +
  geom_dag_point() +
  geom_dag_label(color = "black") +
  # geom_dag_label_repel() +
  scale_color_okabe_ito(na.value = "grey90") +
  theme_dag() +
  theme(legend.position = "none") +
  coord_cartesian(clip = "off")
p1

Modelar las asunciones

Dado el DAG anterior, vamos a utilizar una técnica conocida como propensity score weighting. El objetivo de esta técnica es crear una pseudopoblación que imite como habrían sido los datos si se hubiera hecho un RCT (Randomized Controlled Trial).

__¿Hay desequilibrio entre tratamiento y control en las variables de confusión?

Show the code

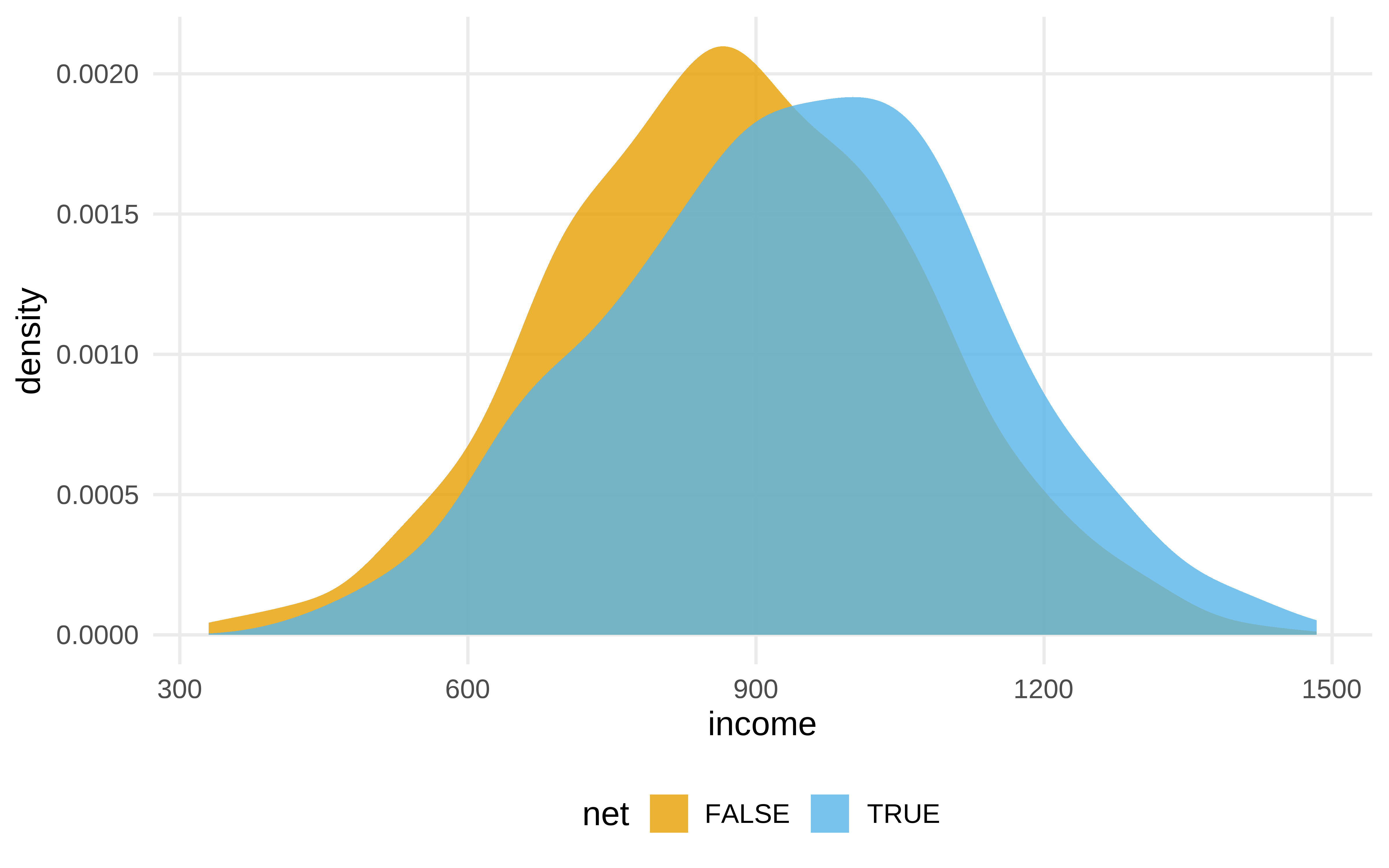

net_data |>
  ggplot(aes(income, fill = net)) +
  geom_density(color = NA, alpha = .8)

Show the code

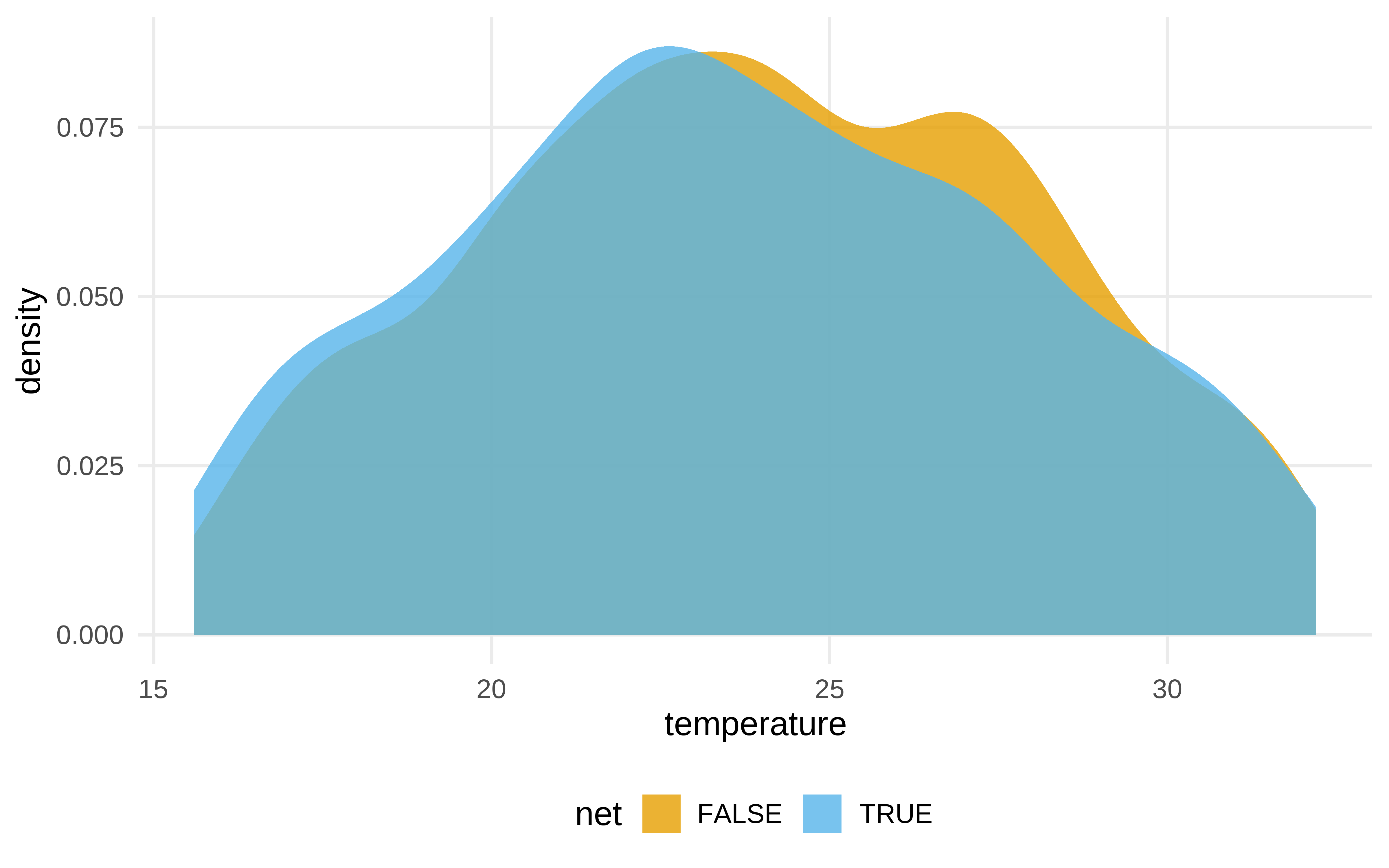

net_data |>
  ggplot(aes(temperature, fill = net)) +
  geom_density(color = NA, alpha = .8)

Show the code

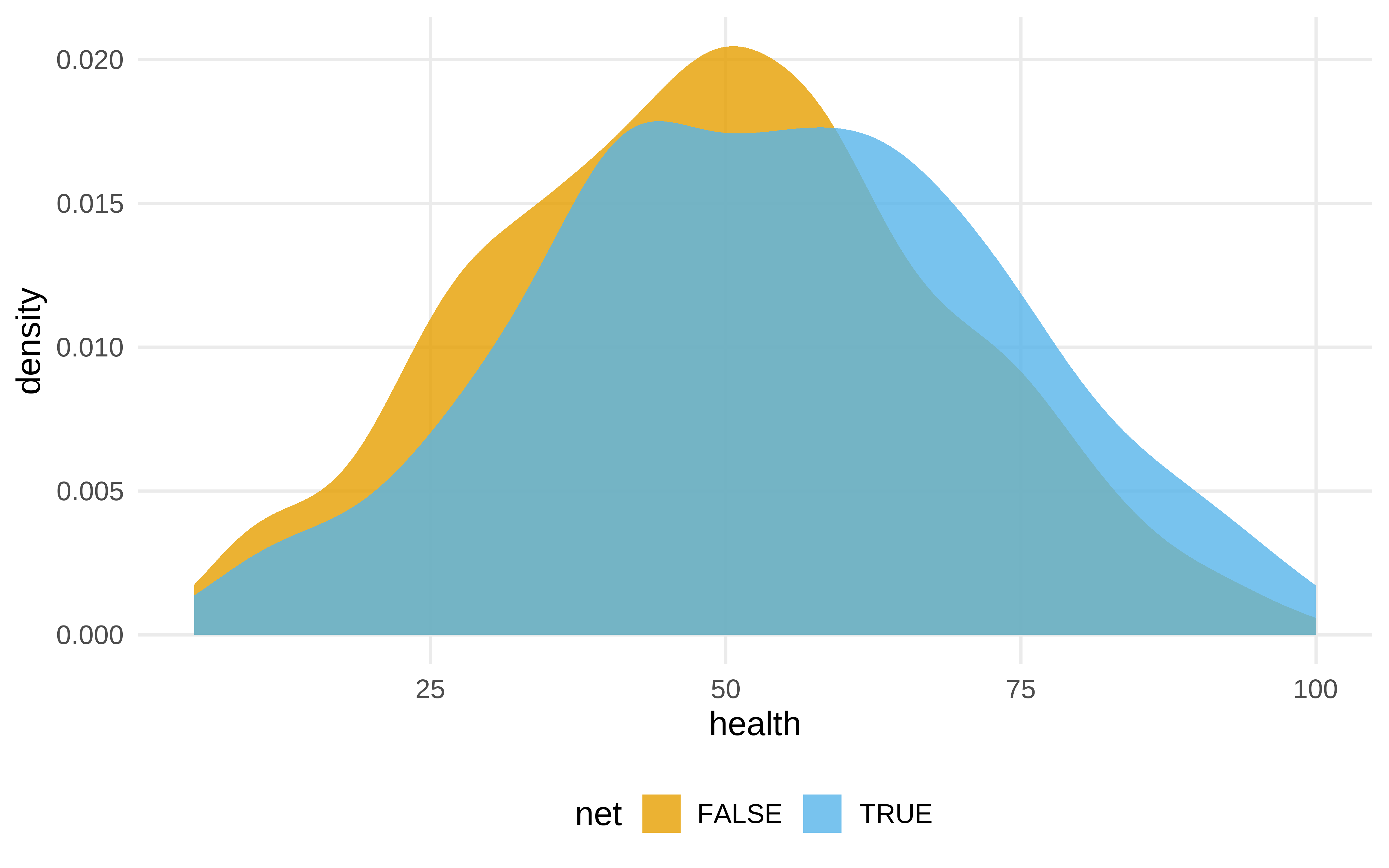

net_data |>
  ggplot(aes(health , fill = net)) +
  geom_density(color = NA, alpha = .8)

Show the code
propensity_model <- glm(
  net ~ income + health + temperature,
  data = net_data,
  family = binomial()
)
Show the code
head(predict(propensity_model, type = "response"))
#>      1      2      3      4      5      6
#> 0.2464 0.2178 0.3230 0.2307 0.2789 0.3060
Show the code
net_data_with_ipw <- net_data |>
  mutate(
    propensity_score = predict(propensity_model, type = "response")
  ) |>
  mutate(
    ipw = ifelse(net_num == 1, 1 / propensity_score, 1 / (1 - propensity_score))
  )

Vemos los ipw. Si una observación ha caído en control pero tiene una probabilidad en el modelo de propensity score de 0.9, su peso es de 1 /(1-0.9) = 10 . Es decir, este individuo se considera un muy buen contrafactual para un individuo de iguales características que hubiera caido en tratamiento.

Show the code
net_data_with_ipw |>
  filter(net_num == 0) |>
  select(net,net_num, propensity_score, ipw) |>
  arrange(desc(propensity_score)) |>
  head()
#> # A tibble: 6 × 4
#>   net   net_num propensity_score   ipw
#>   <lgl>   <dbl>            <dbl> <dbl>
#> 1 FALSE       0            0.475  1.90
#> 2 FALSE       0            0.468  1.88
#> 3 FALSE       0            0.461  1.86
#> 4 FALSE       0            0.451  1.82
#> 5 FALSE       0            0.447  1.81
#> 6 FALSE       0            0.438  1.78
Show the code
net_data_with_ipw |>
  filter(net_num ==1) |>
  arrange(propensity_score) |>
  select(net,net_num, propensity_score, ipw) |>
  head()
#> # A tibble: 6 × 4
#>   net   net_num propensity_score   ipw
#>   <lgl>   <dbl>            <dbl> <dbl>
#> 1 TRUE        1            0.117  8.56
#> 2 TRUE        1            0.120  8.33
#> 3 TRUE        1            0.126  7.92
#> 4 TRUE        1            0.136  7.36
#> 5 TRUE        1            0.138  7.27
#> 6 TRUE        1            0.139  7.19

Copia la parte de obtener los peso ipw a partir de las predicciones

Diagnosticar las asunciones

¿Qué es lo que ha cambiado al hacer el ipw?

Estimar el efecto causal

Usando ipw

Pero una vez se ha hecho el ipw, la varianza del estimador que da el modelo lm no es correcta, hay que calcularla usando otras técnicas, como estimadores robustos o bootstrap. Usaremos bootstrap

Usando reglas de Pearl

Pensemos como cortar los caminos no causales

Show the code
p1

Pero la librería dagitty nos sirve para esto

Show the code
dagitty::adjustmentSets(mosquito_dag, effect = "total")
#> { health, income, temperature }
Show the code

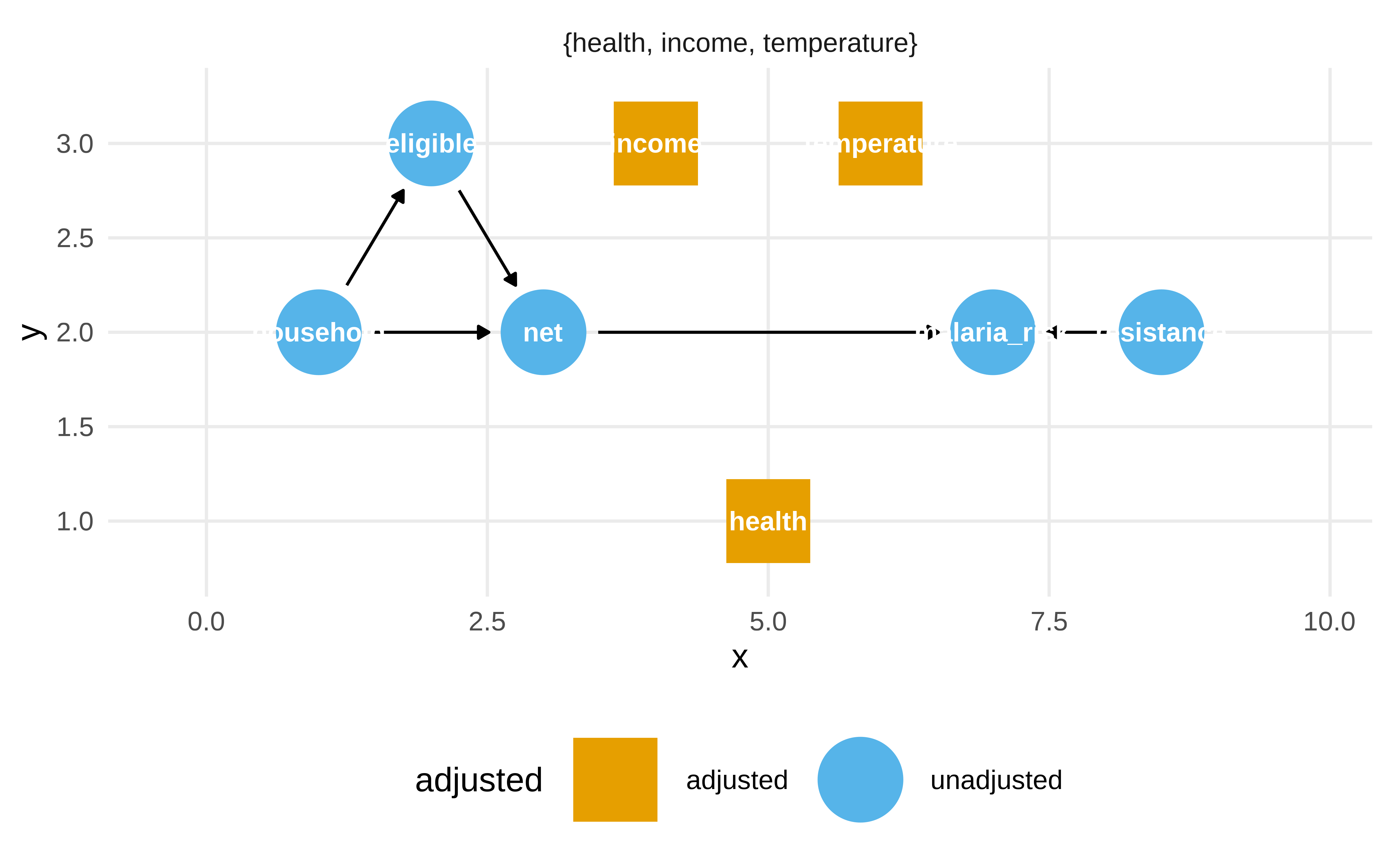

ggdag_adjustment_set(mosquito_dag, effect = "total")

Modelo bayesiano

Show the code
library(cmdstanr)
library(brms)
library(posterior) # para cosas como rvar

options(brms.backend = "cmdstanr")
Show the code
m_bayesian <- brm(
  malaria_risk ~ net + income + temperature + health ,
  data = net_data,
  seed = 48,
  chains = 4,
  iter = 4000,
  warmup = 1000,
  cores = 4,
  file = here::here("brms_stan_models/net_1"),
  file_refit = "on_change"

)

# hqy que evitar el exceso de decimales dando impresión de falsa exactitud
m_bayesian
#>  Family: gaussian
#>   Links: mu = identity; sigma = identity
#> Formula: malaria_risk ~ net + income + temperature + health
#>    Data: net_data (Number of observations: 1752)
#>   Draws: 4 chains, each with iter = 4000; warmup = 1000; thin = 1;
#>          total post-warmup draws = 12000
#>
#> Regression Coefficients:
#>             Estimate Est.Error l-95% CI u-95% CI Rhat
#> Intercept      79.36      1.03    77.35    81.39 1.00
#> netTRUE       -12.00      0.31   -12.61   -11.39 1.00
#> income         -0.08      0.00    -0.08    -0.07 1.00
#> temperature     1.01      0.03     0.94     1.08 1.00
#> health          0.14      0.01     0.12     0.16 1.00
#>             Bulk_ESS Tail_ESS
#> Intercept      11125    10282
#> netTRUE        10925     8382
#> income         11593     9652
#> temperature    10913     8132
#> health         11001     9015
#>
#> Further Distributional Parameters:
#>       Estimate Est.Error l-95% CI u-95% CI Rhat
#> sigma     5.70      0.10     5.51     5.89 1.00
#>       Bulk_ESS Tail_ESS
#> sigma    12498     8777
#>
#> Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
#> and Tail_ESS are effective sample size measures, and Rhat is the potential
#> scale reduction factor on split chains (at convergence, Rhat = 1).
Show the code
round(posterior_summary(m_bayesian, variable = "b_netTRUE"), 2)
#>           Estimate Est.Error   Q2.5  Q97.5
#> b_netTRUE      -12      0.31 -12.61 -11.39
Show the code

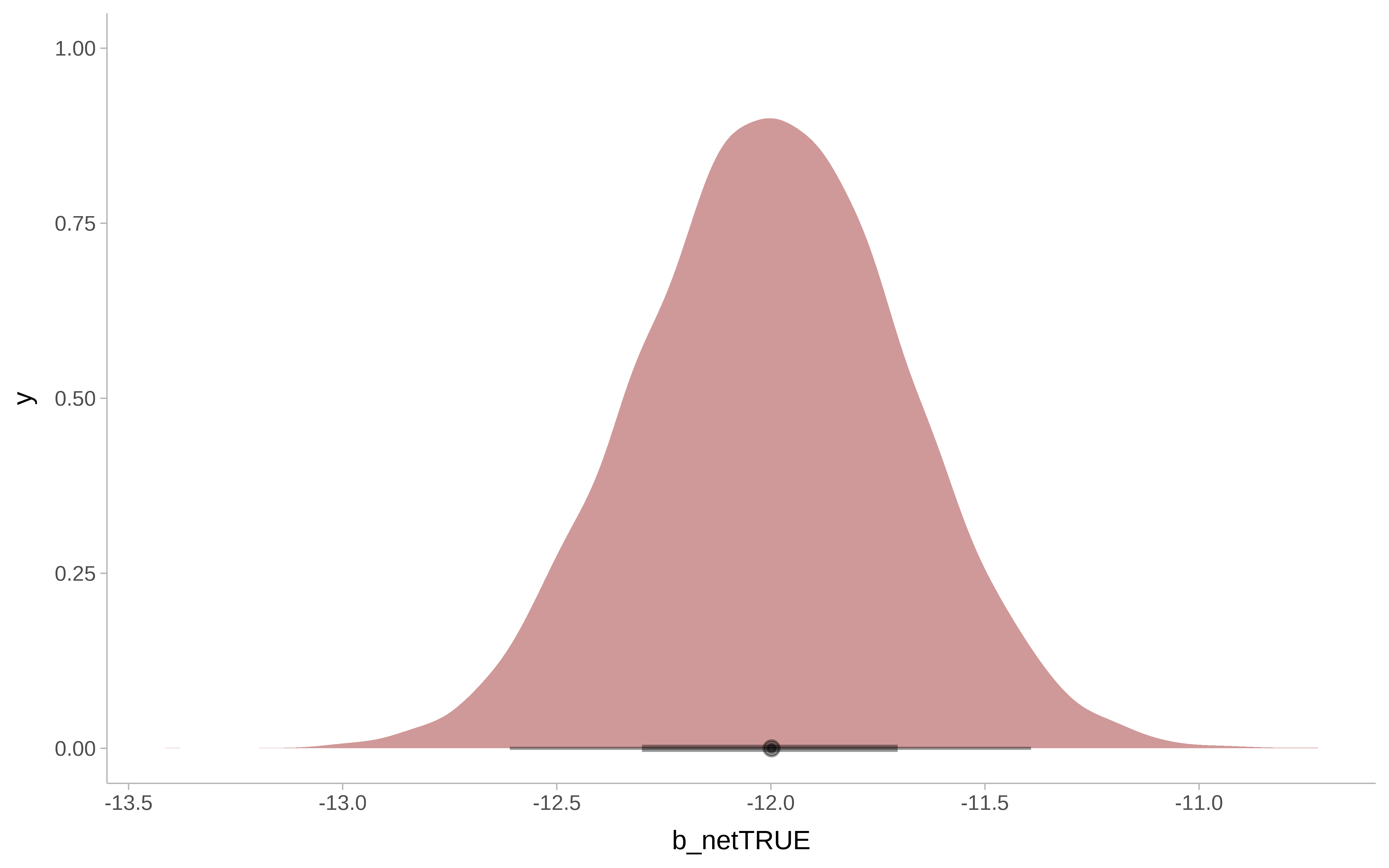

m_bayesian |>
  as_tibble() |>
  ggplot() +
  ggdist::stat_halfeye(
    aes( x = b_netTRUE),
    fill = "darkred",
    alpha = 0.4)  +
  ggdist::theme_ggdist()

Análisis de sensibilidad

Y si hubiera una variable de confusión no observada?. Si fuera un RCT, el mismo mecanismo de aleatorización nos protege frente a esas variables, pero no en un estudio observacional.

Imaginemos que existe una variable de confusión que es resistencia genética de la población a la malaria.

Suponemos lo siguiente.

  1. Está asociada con la variable respuesta, porque en media la gente con resistencia genética tiene una reducción de riesgo alrededor de 10.
  2. Está asociada con la variable de tratamiento, puesto que entre los que usan mosquiteras, el 26 % tienen esta resistencia. Pero entre los que no usan mosquiteras, solo el 5% la tienen.

Con la librería tipr se puede inferir cuál sería el efecto si existiera ese confounder no observado.

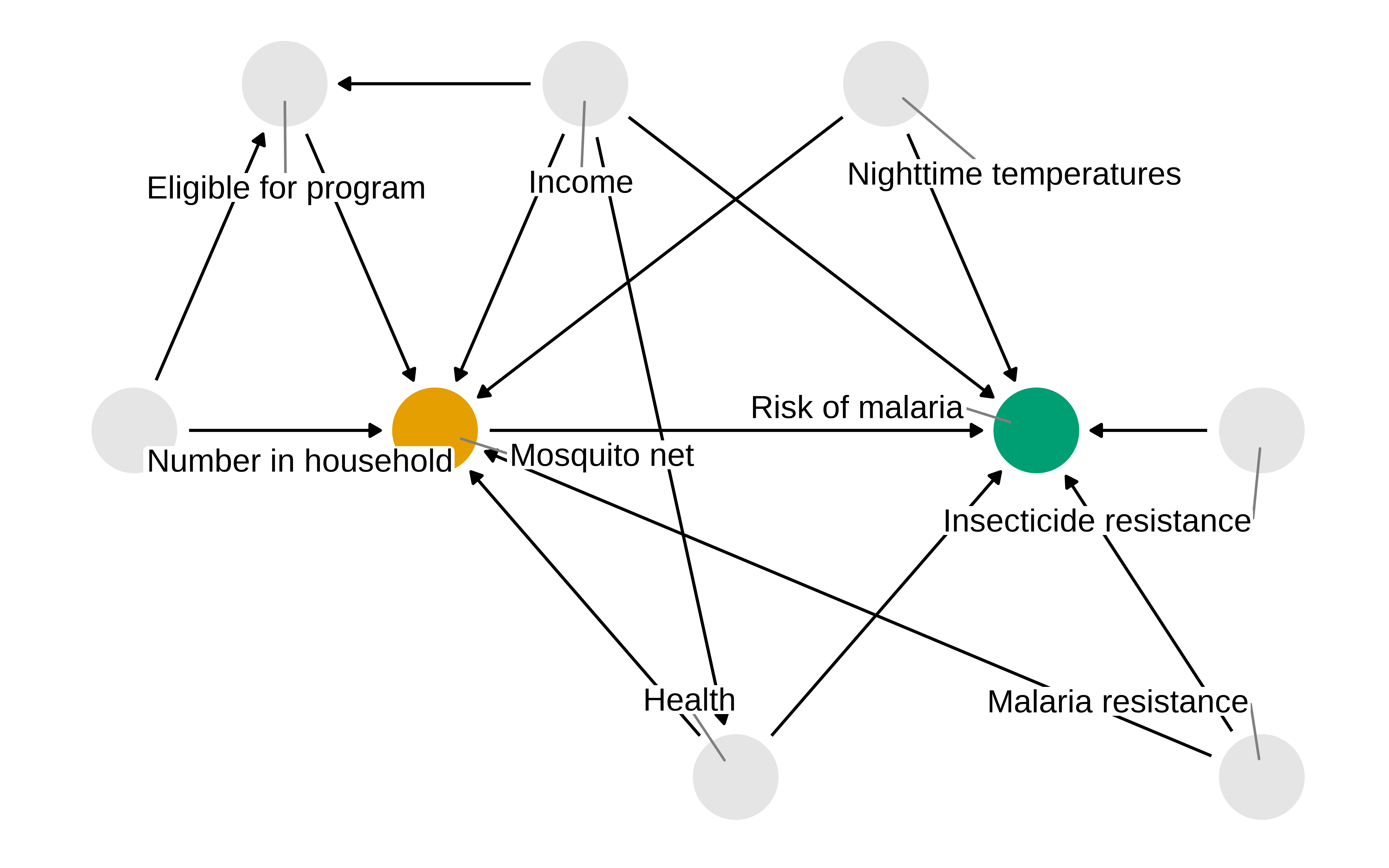

Verdadero DAG

Y después de todo, como los datos son simulados sabemos que existe una variable de confusión

Show the code
mosquito_dag_full <- dagify(
  malaria_risk ~ net + income + health + temperature + insecticide_resistance + genetic_resistance,
  net ~ income + health + temperature + eligible + household + genetic_resistance,
  eligible ~ income + household,
  health ~ income,
  exposure = "net",
  outcome = "malaria_risk",
  coords = list(
    x = c(
      malaria_risk = 7,
      net = 3,
      income = 4,
      health = 5,
      temperature = 6,
      insecticide_resistance = 8.5,
      eligible = 2,
      household = 1,
      genetic_resistance = 8.5
    ),
    y = c(
      malaria_risk = 2,
      net = 2,
      income = 3,
      health = 1,
      temperature = 3,
      insecticide_resistance = 2,
      eligible = 3,
      household = 2,
      genetic_resistance = 1
    )
  ),
  labels = c(
    malaria_risk = "Risk of malaria",
    net = "Mosquito net",
    income = "Income",
    health = "Health",
    temperature = "Nighttime temperatures",
    insecticide_resistance = "Insecticide resistance",
    eligible = "Eligible for program",
    household = "Number in household",
    genetic_resistance = "Malaria resistance"
  )
)

mosquito_dag_full |>
  tidy_dagitty() |>
  node_status() |>
  ggplot(
    aes(x, y, xend = xend, yend = yend, color = status)
  ) +
  geom_dag_edges() +
  geom_dag_point() +
  geom_dag_label_repel() +
  scale_color_okabe_ito(na.value = "grey90") +
  theme_dag() +
  theme(legend.position = "none") +
  coord_cartesian(clip = "off")

Show the code
net_data_full <- read.csv(here::here("data/net_data_full.csv"))
glimpse(net_data_full)
#> Rows: 1,752
#> Columns: 11
#> $ id                     <int> 1, 2, 3, 4, 5, 6, 7, 8…
#> $ net                    <lgl> FALSE, FALSE, FALSE, F…
#> $ net_num                <int> 0, 0, 0, 0, 0, 0, 0, 0…
#> $ malaria_risk           <int> 38, 48, 32, 55, 36, 30…
#> $ income                 <int> 779, 700, 1083, 753, 9…
#> $ health                 <int> 35, 35, 58, 68, 46, 37…
#> $ household              <int> 1, 3, 3, 3, 5, 3, 1, 2…
#> $ eligible               <lgl> FALSE, FALSE, FALSE, F…
#> $ temperature            <dbl> 18.3, 18.6, 24.2, 19.1…
#> $ insecticide_resistance <int> 38, 40, 70, 57, 59, 49…
#> $ genetic_resistance     <int> 0, 0, 0, 0, 0, 0, 0, 1…
Show the code
fit_ipw_full <- function(split, ...) {
  # get bootstrapped data sample with `rsample::analysis()`
  .df <- analysis(split)

  # fit propensity score model
  propensity_model <- glm(
    net ~ income + health + temperature + genetic_resistance,,
    data = .df,
    family = binomial()
  )

  # calculate inverse probability weights
  .df <-  .df |>
  mutate(
    propensity_score = predict(propensity_model, type = "response")
  ) |>
  mutate(
    ipw = ifelse(net_num == 1, 1 / propensity_score, 1 / (1 - propensity_score))
  )


  # fit correctly bootstrapped ipw model
  lm(malaria_risk ~ net, data = .df, weights = ipw) |>
    tidy()
}
Show the code
bootstrapped_net_data_full <- bootstraps(
  net_data_full,
  times = 1000,
  # required to calculate CIs later
  apparent = TRUE
)

ipw_results_full <- bootstrapped_net_data_full |>
  mutate(boot_fits = map(splits, fit_ipw_full))

boot_estimate_full <- ipw_results_full |>
  # calculate T-statistic-based CIs
  int_t(boot_fits) |>
  filter(term == "netTRUE")

boot_estimate_full
#> # A tibble: 1 × 6
#>   term    .lower .estimate .upper .alpha .method
#>   <chr>    <dbl>     <dbl>  <dbl>  <dbl> <chr>
#> 1 netTRUE  -11.1     -10.3  -9.26   0.05 student-t
Show the code

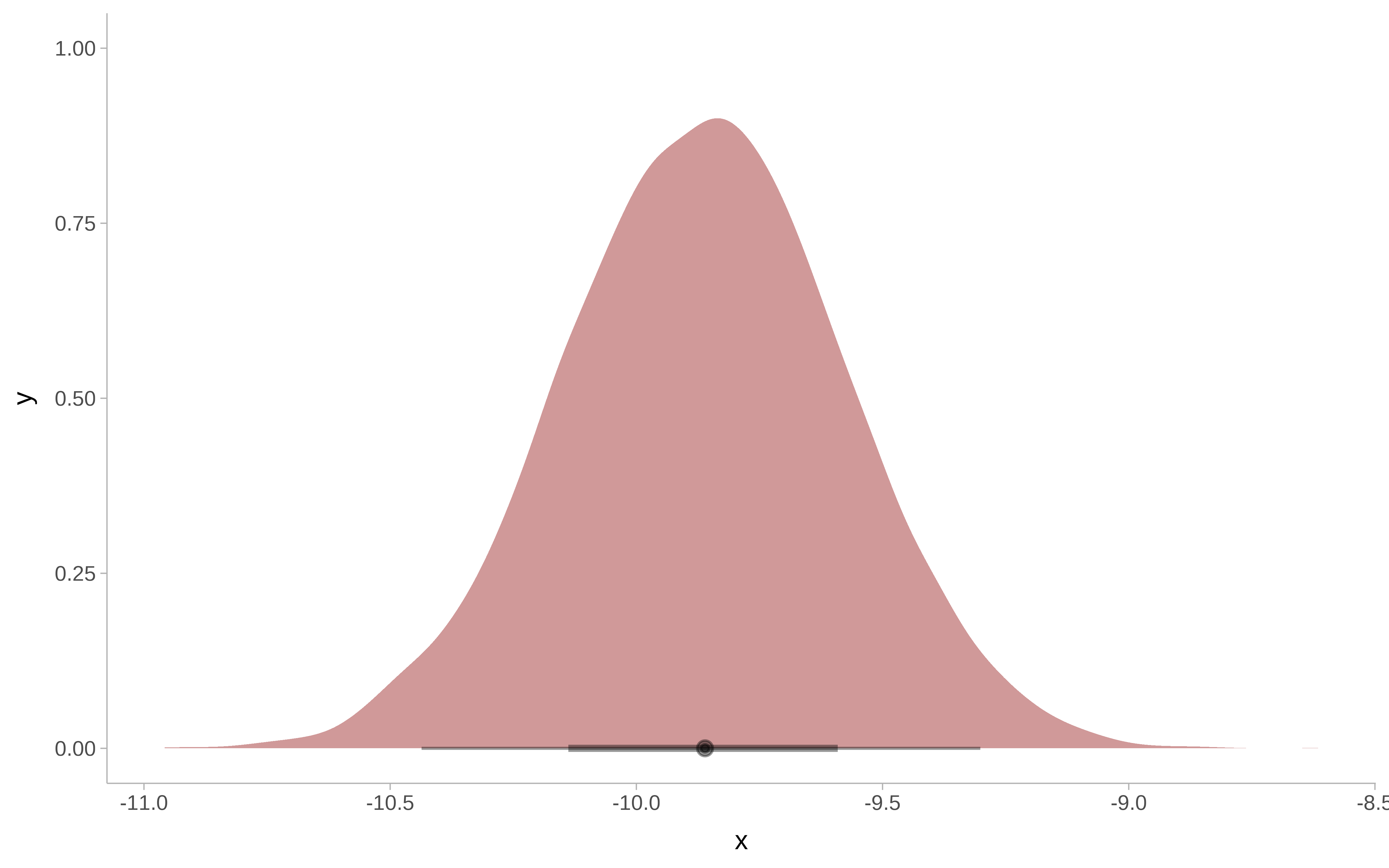

m_bayesian_full <- brm(
  malaria_risk ~ net + income + temperature + health + genetic_resistance ,
  data = net_data_full,
  seed = 48,
  chains = 4,
  iter = 4000,
  warmup = 1000,
  cores = 4,
  file = here::here("brms_stan_models/net_2"),
  file_refit = "on_change"

)

summary(m_bayesian_full)
#>  Family: gaussian
#>   Links: mu = identity; sigma = identity
#> Formula: malaria_risk ~ net + income + temperature + health + genetic_resistance
#>    Data: net_data_full (Number of observations: 1752)
#>   Draws: 4 chains, each with iter = 4000; warmup = 1000; thin = 1;
#>          total post-warmup draws = 12000
#>
#> Regression Coefficients:
#>                    Estimate Est.Error l-95% CI
#> Intercept             79.29      0.90    77.52
#> netTRUE               -9.86      0.29   -10.44
#> income                -0.08      0.00    -0.08
#> temperature            1.04      0.03     0.98
#> health                 0.14      0.01     0.12
#> genetic_resistance    -9.52      0.41   -10.31
#>                    u-95% CI Rhat Bulk_ESS Tail_ESS
#> Intercept             81.03 1.00    10903     9660
#> netTRUE               -9.30 1.00    10819     8422
#> income                -0.07 1.00    11791     9128
#> temperature            1.10 1.00    10462     8164
#> health                 0.16 1.00    11451     8186
#> genetic_resistance    -8.71 1.00     9734     8175
#>
#> Further Distributional Parameters:
#>       Estimate Est.Error l-95% CI u-95% CI Rhat
#> sigma     4.99      0.08     4.83     5.16 1.00
#>       Bulk_ESS Tail_ESS
#> sigma    11168     8306
#>
#> Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
#> and Tail_ESS are effective sample size measures, and Rhat is the potential
#> scale reduction factor on split chains (at convergence, Rhat = 1).
Show the code
round(posterior_summary(m_bayesian_full, variable = "b_netTRUE"), 2)
#>           Estimate Est.Error   Q2.5 Q97.5
#> b_netTRUE    -9.86      0.29 -10.44  -9.3
Show the code
posteriores <-  as_tibble(m_bayesian_full)

post_rvars <- as_draws_rvars(posteriores)

post_rvars$b_netTRUE |>
  enframe() |>
  ggplot() +
  ggdist::stat_halfeye(
    aes( xdist = value),
    fill = "darkred",
    alpha = 0.4)  +
  ggdist::theme_ggdist()
